Products

Danisense is redefining the high end current transducer market by offering a large range of current transducers.

With a very high perceived current transducer quality, extremely flat frequency response and outstanding DC stability.

Current Clamp

Family Name	Output Type	Rated primary current Arms
Family Name	Output Type	200	500	1000

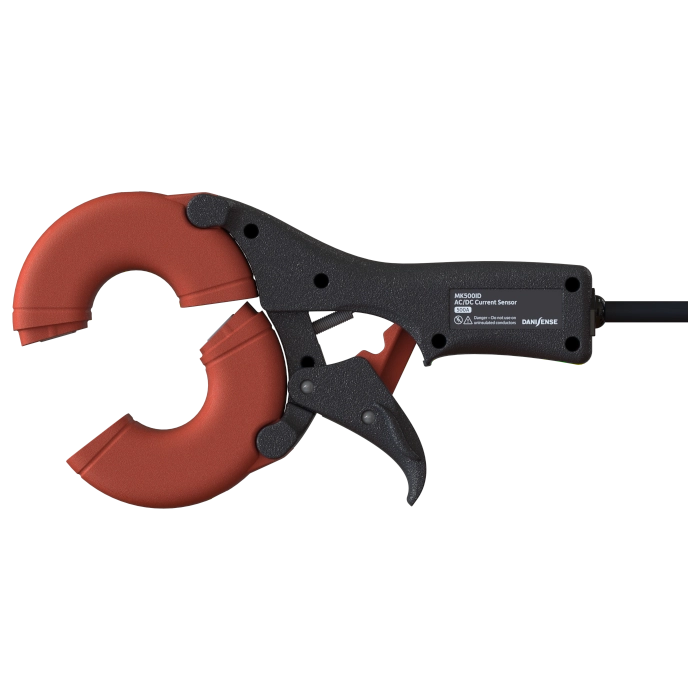

MK series	Current		MK500ID

Standard Transducers

Family Name	Output Type	Options	Rated primary current Arms
Family Name	Output Type	Options	<50	<100	<200	<400	<700	<1200

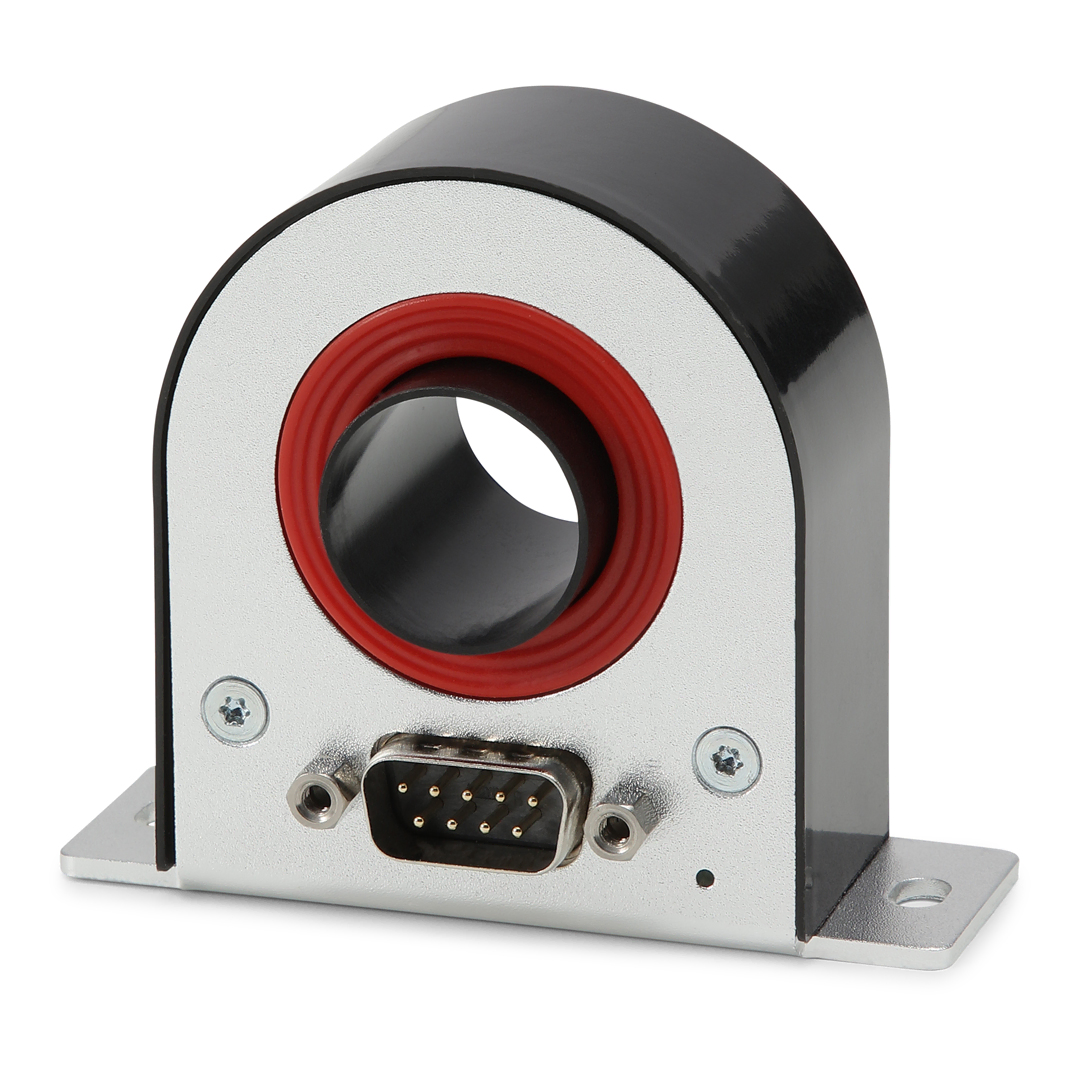

DT Series	Current	Standard	DT50ID	DT100ID	DT200ID
DS Series	Current	Standard	DS50ID		DS200ID	DS300ID DS400ID	DS600ID
	Current	Calibration Winding			DS200ID-CD100 DS200ID-CD1000		DS600ID-CD100
	Voltage	Standard	DS50UB-1V DS50UB-10V		DS200UB-1V DS200UB-10V	DS300UB-1V DS300UB-10V DS400UB-1V DS400UB-10V	DS600UB-1V DS600UB-10V DS1000UB-10V

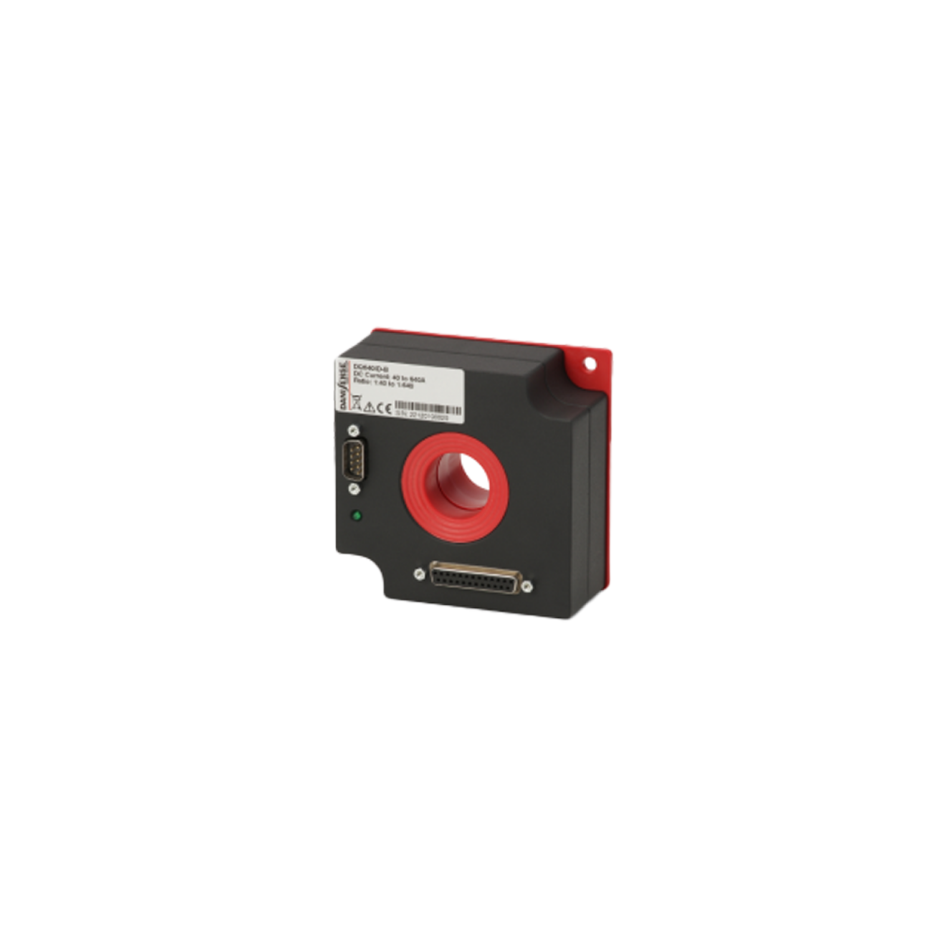

DQ Series	Current	Standard					DQ500ID DQ600ID DQ600ID-P1300
DQ Series	Current	Programable					DQ640ID-B
DN Series	Current	Standard						DN1000ID
DN Series	Current	Standard						DN1000ID-CP02

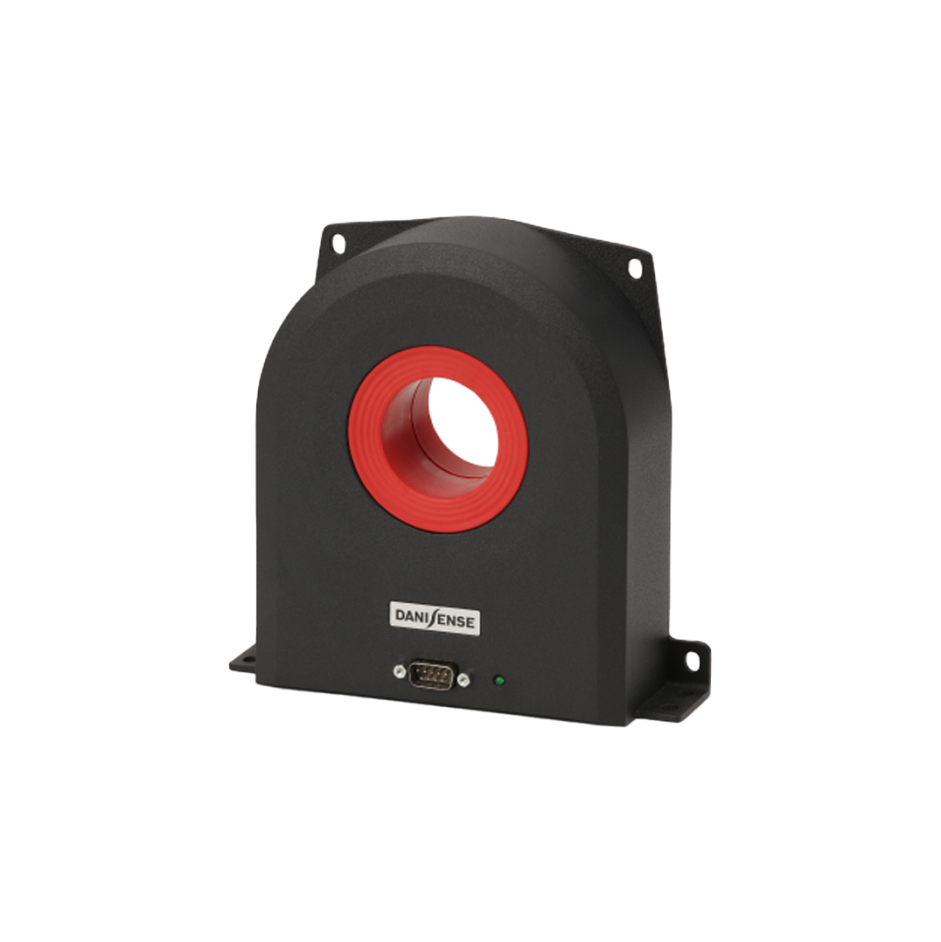

DM Series	Current	Standard						DM1200ID
	Current	Calibration Winding						DM1200ID-CD3000
	Voltage	Standard						DM1200UB-1V DM1200UB-10V

Special Transducers

Family Name	Output Type	Rated primary current Arms
Family Name	Output Type	50	200	500
DP series	Current	DP50IP-B

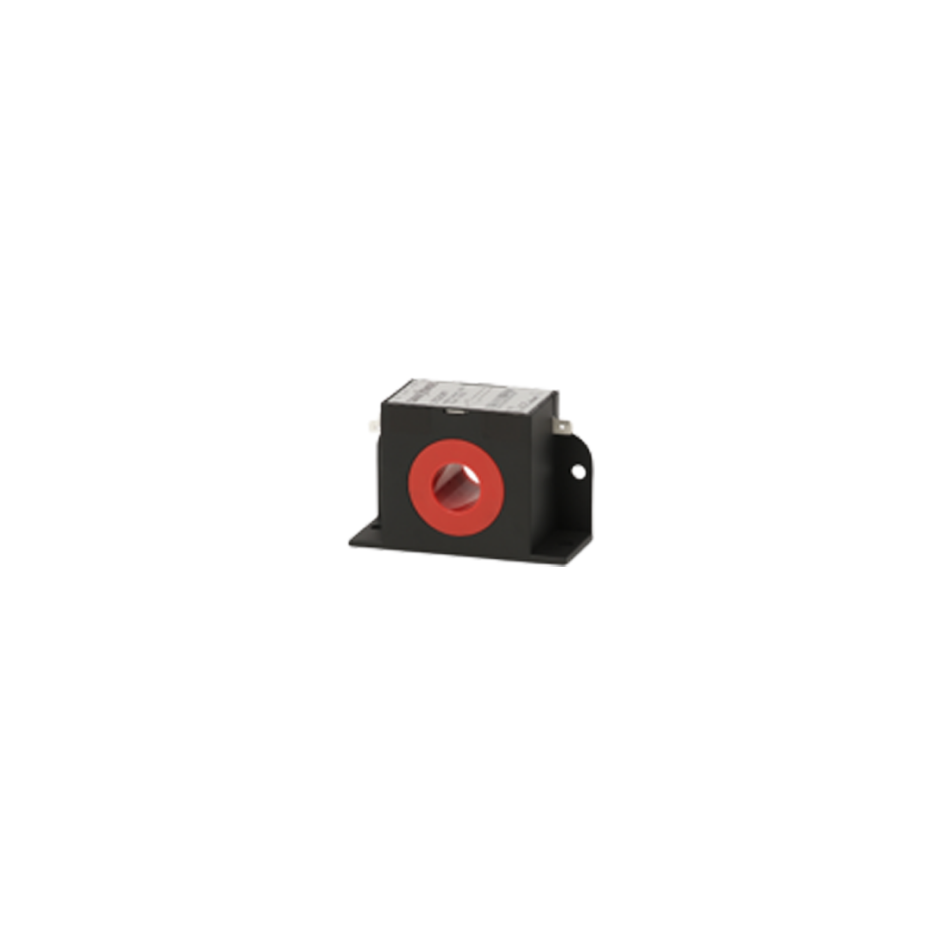

DC Series	Current		DC200IF
DW series	Voltage			DW500UB-2V

High Current Transducers

Family Name	Output Type	Options	Rated primary current Arms
Family Name	Output Type	Options	1400	2000	3600	5000	7000
DL Series	Current	Standard		DL2000ID
	Current	Calibration Winding		DL2000ID-CD100 DL2000ID-CB100
	Voltage	Standard	DL2000UB-10V	DL2000UB-1V

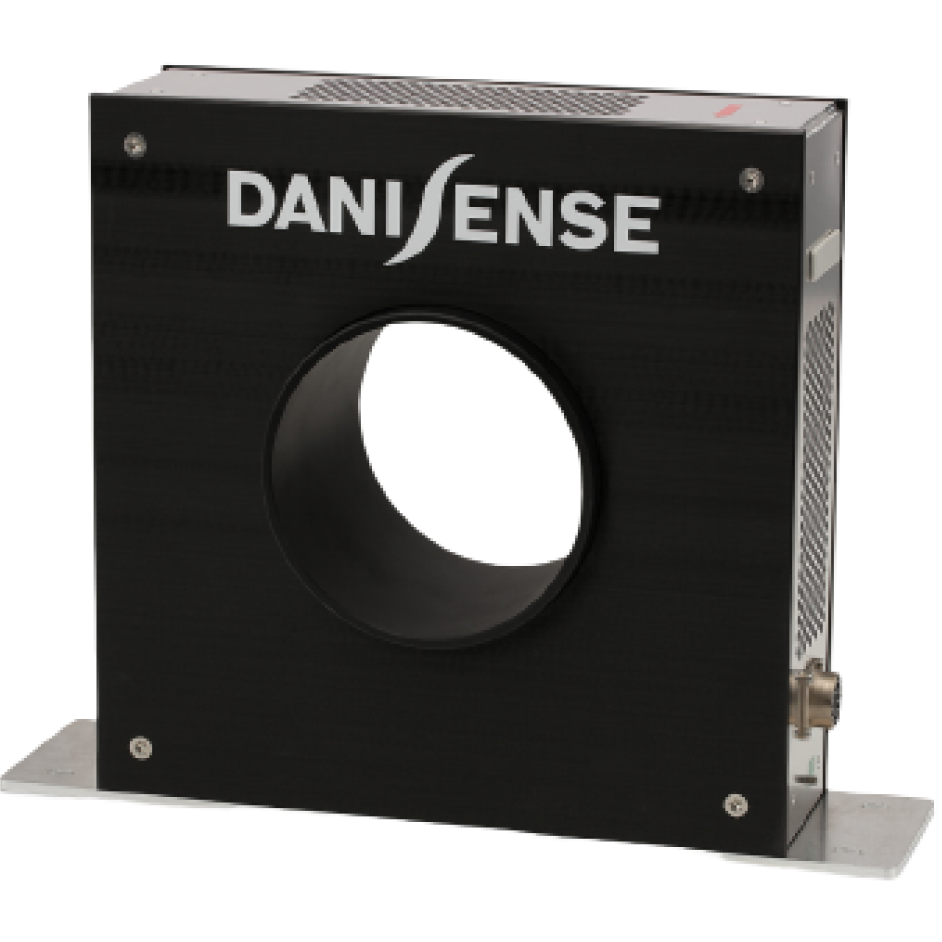

DR Series	Current					DR5000IM	DR10000IM
DR Series	Voltage				DR5000UX-10V / 5000A	DR5000UX-10V / 7500A	DR10000UX-10V

Residual Current Monitors

Family Name	Output Type	Options	Rated primary current Arms
			0 – 2A

RCM	Current	Standard	RCMH070IB+
RCM	Current	Smart RCM	SRCMH070IB+

Cables

Family Name	Length(m)	Connection 1	Connection 2	Comment
Family Name	Length(m)	Connection 1	Connection 2	Comment
DSUB2	2	Transducer	DSSIU-1, DSSIU-4-1U or DSSIU-6-1U
DSUB3	3	Transducer	DSSIU-1, DSSIU-4-1U or DSSIU-6-1U
DSUB5	5	Transducer	DSSIU-1, DSSIU-4-1U or DSSIU-6-1U
DSUB10	10	Transducer	DSSIU-1, DSSIU-4-1U or DSSIU-6-1U
DSUB15	15	Transducer	DSSIU-1, DSSIU-4-1U or DSSIU-6-1U	Not to be used with DL2000 at full specification – call or write us with your specific requirements
DSUB20	20	Transducer	DSSIU-1, DSSIU-4-1U or DSSIU-6-1U	Not to be used with DL2000 at full specification – call or write us with your specific requirements
DS-UB Power	3	Voltage output Transducer	Own power source	Has 4 bananaplugs for lab power supply
DS-ID Power	3	Current output Transducer	Own power source	Has 6 bananaplugs for lab power supply
XLRm	2	XLRm	3 Banana	Voltage
XLRm	2	XLRm	2 Banana	Current

System Interface Units

Family Name	Height (w)	#Channels	Mains	Status Port	Product	Comment

DSSIU-1	56 mm	1	100-240V AC	Yes	DSSIU-1
DSSIU-1-V	56 mm	1	100-240V AC	Yes	DSSIU-1-V
DSSIU-4-1U	1U (19″)	4	100-240V AC	No	DSSIU-4-1U
DSSIU-6-1U	1U (19″)	6	100-240V AC	Yes	DSSIU-6-1U	Calibration winding functionality
DSSIU-6-1U-V	1U (19″)	6	100-240V AC	Yes	DSSIU-6-1U-V	Calibration winding functionality Voltage output configurable

Standard Transducers

Family Name		MK Series
Output Type		Current
Options
Rated primary current Arms	500 A	MK500ID

Standard Transducers

Family Name		DT Series
Output type		Current		Voltage
Options		Standard	Calibration Winding	Standard
Rated primary current Arms	50A	DT50ID
	100A	DT100ID
	200A	DT200ID
	300-400A
	500-1000A
	1200A
	2000A
	3600A
	5000A
	7000A

Family Name		DS Series
Output type		Current		Voltage
Options		Standard	Calibration Winding	Standard
Rated primary current Arms	50A	DS50ID		DS50UB-1V DS50UB-10V
	200	DS200ID	DS200ID-CD100 DS200ID-CD1000	DS200UB-1V DS200UB-10V
	300-400A	DS300ID DS400ID		DS300UB-1V DS300UB-10V DS400UB-1V DS400UB-10V
	500-1000A	DS600ID	DS600ID-CD100	DS600UB-1V DS600UB-10V DS1000UB-10V
	1200A
	2000A
	3600A
	5000A
	7000A

Family Name		DN Series
Output type		Current		Voltage
Options		Standard	Calibration Winding	Standard
Rated primary current Arms	50A
	100A
	200A
	300-400A
	500-1000A	DN1000ID
	1200A
	2000A
	3600A
	5000A
	7000A

Family Name		DM Series
Output type		Current		Voltage
Options		Standard	Calibration Winding	Standard
Rated primary current Arms	50A
	200
	300-400A
	500-1000A
	1200A	DM1200ID	DM1200ID-CD3000	DM1200UB-1V DM1200UB-10V
	2000A
	3600A
	5000A
	7000A

Family Name		DL Series
Output type		Current		Voltage
Options		Standard	Calibration Winding	Standard
Rated primary current Arms	50A
	200
	300-400A
	500-1000A
	1200A
	2000A	DL2000ID	DL2000ID-CD100 DL2000ID-CB100	DL2000UB-1V DL2000UB-10V
	3600A
	5000A
	7000A

Family name		DQ Series
Output type		Current
Options		Standard	Programable
Rated primary current Arms	50A
	200
	300-400A
	500-1000A	DQ500ID DQ600ID DQ600ID-P1300	DQ640ID-B
	1200A
	2000A
	3600A
	5000A
	7000A

Special Transducers

Family Name		DP Series
Output Type		Current
Options
Rated primary current Arms	72 A	DP50IP-B

Family Name		DC series
Output Type		Current
Options
Rated primary current Arms	300 A	DC200IF

Family Name		DW Series
Output Type		Voltage
Options
Rated primary current Arms	500 A	DW500UB-2V

High Current Transducers

Family name		DR Series
Output type		Current	Voltage
Options
Rated primary current Arms	5000 A	DR5000IM	DR5000UX-10V / 5000A DR5000UX-10V / 7500A
Rated primary current Arms	10000 A	DR10000IM	DR10000UX – 10V

Residual Current Monitors

Family name		RMC
Output type		Current	Current
Options		Standard	Smart RCM
Rated primary current Arms	0 – 2A	RCMH070IB+	SRCMH070IB+

Cables

Family Name		Cables
Product	Length(m)	Connection 1	Connection 2
DSUB2	2	Transducer	DSSIU-1, DSSIU-4-1U or DSSIU-6-1U
DSUB3	3	Transducer	DSSIU-1, DSSIU-4-1U or DSSIU-6-1U
DSUB5	5	Transducer	DSSIU-1, DSSIU-4-1U or DSSIU-6-1U
DSUB10	10	Transducer	DSSIU-1, DSSIU-4-1U or DSSIU-6-1U
DSUB15	15	Transducer	DSSIU-1, DSSIU-4-1U or DSSIU-6-1U
DSUB20	20	Transducer	DSSIU-1, DSSIU-4-1U or DSSIU-6-1U
DS-UB Power	3	Voltage output Transducer	Own power source
DS-ID Power	3	Current output Transducer	Own power source
XLRm	2	XLRm	3 Banana
XLRm	2	XLRm	2 Banana

System Interface Units

Family Name	SIU
Product	Status Port	Height (w)	#Channels	Mains
DSSIU-1	Yes	56 mm	1	100-240V AC
DSSIU-1-V	Yes	56 mm	1	100-240V AC
DSSIU-4-1U	No	1U (19″)	4	100-240V AC
DSSIU-6-1U	Yes	1U (19″)	6	100-240V AC
DSSIU-6-1U-V	Yes	1U (19″)	6	100-240V AC

Please see our Systems Interface Units page for more information.
