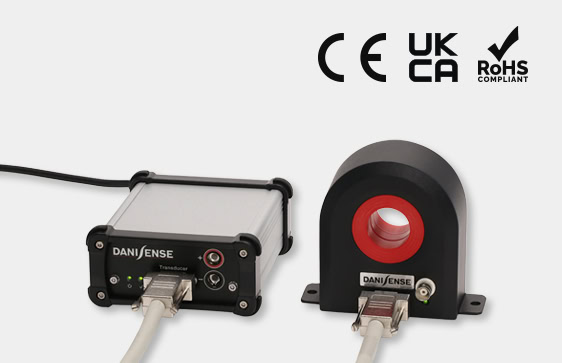

Current Transducer

DS300UB-1V

  • Linearity error maximum ±15 ppm
  • 1V BNC output connection
  • Fluxgate, closed loop compensated technology with fixed excitation frequency and second harmonic zero flux detection for best in class accuracy and stability
  • Green diode for normal operation indication
  • Full aluminum body for superior EMI shielding and extended operating temperature range
  • Large aperture Ø27.6mm for cables and bus bars

Contact us

Description

Ultra-stable, high precision (ppm class) fluxgate technology DS Series current transducer for non-intrusive, isolated DC and AC current measurement up to 450A.

Primary Current Rating
AC/DC RMS
Peak
Total Accuracy
Bandwidth
Aperture

Applications

  • MPS for particles accelerators
  • Gradient amplifiers for MRI devices
  • Stable power supplies
  • Precision drives
  • Batteriy testing and evaluation systems
  • Power measurement and power analysis
  • Current calibration purposes
