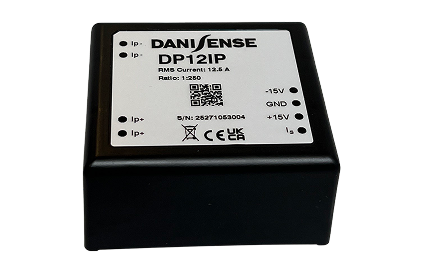

Current Transducer

DP12IP

Linearity error maximum 10 ppm
Measurement resistor up to 100Ω at full scale
Fluxgate, closed loop compensated technology with fixed excitation frequency and second harmonic zero flux detection for best in class accuracy and stability
PCB mount
Height 32mm - Suitable for 1U power supplies
250g weight and compact size - ideal for PCB-mounted applications with space constraints

Description

Ultra-stable, high precision (ppm class) fluxgate technology DP Series current transducer for isolated DC and AC current measurement on PCB up to 18A

Applications

MPS for particles accelerators
Stable power supplies
Precision drives
Batteries testing and evaluation systems
Power measurement and power analysis

SYSTEM INTERFACE UNIT OVERVIEW

Number of Channels

Output Type

1

4

6

Current Output

Current Output

N.A

Current Transducers

DT series

YES

DS series

YES

DQ series

YES

DN series

YES

DM series

YES

DL series

NO

YES

YES*
