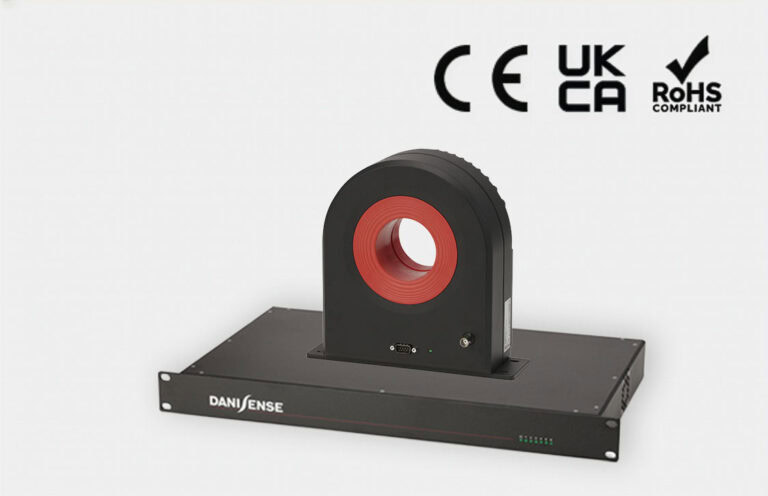

Current Transducer
DL2000UB-10V
- 1414 A rms nominal current
- 10 V output at 2000 A with BNC connector
- Ø68 mm aperture
- 108 ppm total accuracy
- 8 ppm offset
- Status signal and LED
High precision DC current transducer (DCCT)
measuring up to 2200 A currents and continuously
measuring 2000 A currents with a linearity error less
than 30 ppm.
Based on the ultra stable Danisense closed loop flux
gate technology, the DL2000UB-10V has very low offset and ultra low drift.
With an integrated voltage output module (VOM)
outputting 10V at 2000 A, the DL2000UB-10V makes
high current measuring easy.
It provides high resolution for precise monitoring,
reliable and consistent performance, and a rugged, full aluminium design for durability.
