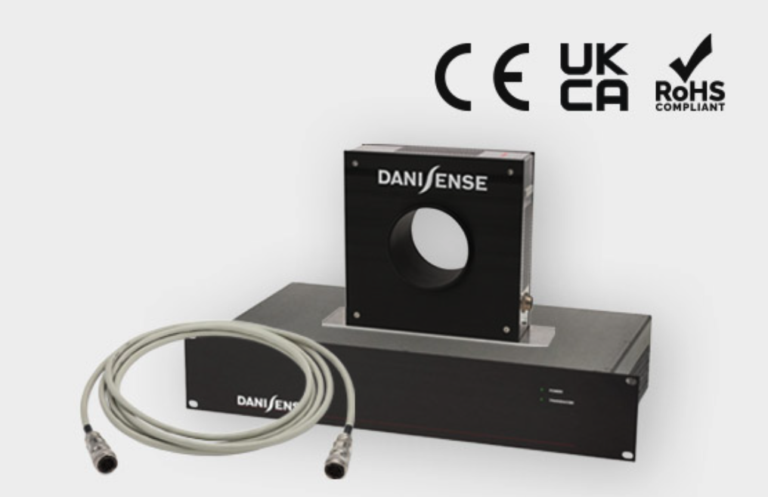

Current Transducer
DR10000IM
- Linearity error maximum 1 ppm
- 4mm banana jack for secondary current
- Transducer core optimized for high level of immunity against external magnetic fields
- Operating temperature: Transducer head 0-70°C - Electronics 0-45°C
- Turns ratio 1:2500
- Aperture diameter 140 mm
- 2U 19” Control unit with universal (100-240V AC 50/60Hz) AC input voltage or 120-370V DC input voltage
- Danisense advanced sensor protection circuit “ASPC”
