Dedicated 6-channel system interface unit for ultra-stable, high precision fluxgate technology DS series current transducers.
Powers up to 6 x Transducers from the DT-series, DS-series, DQ-series, DN-series, DM-series or DL-series at the same time.

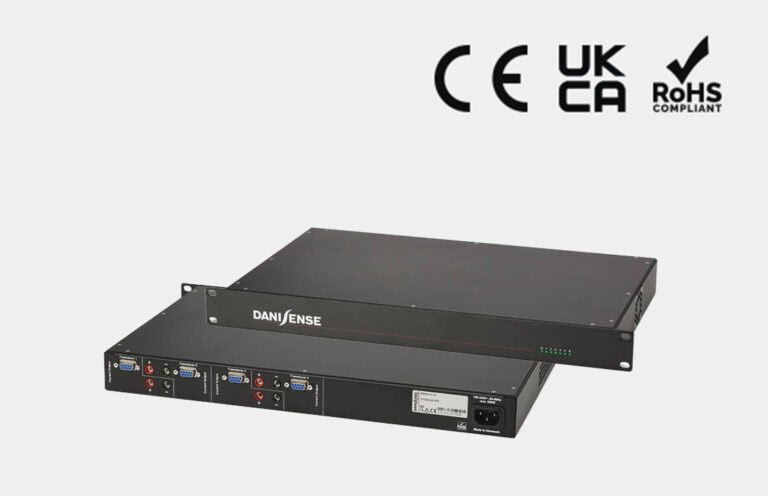

Current Transducer Interface Unit
DSSIU-6-1U
- Compact 19” rack mount 1U height
- Current transducers’ output signals available via 4mm banana plugs
- Individual or serial access to calibration windings of all 6 transducers via 4mm banana plugs
- 15-pin DSUB connector provides access to isolated status signals of each transducer and power
- Front LEDs indication of normal operation for each transducer and power LED for DSSIU-6-1U
- Universal autorange (100-240V AC 50-60Hz) AC input voltage or 127–370V DC input voltage.
Description
