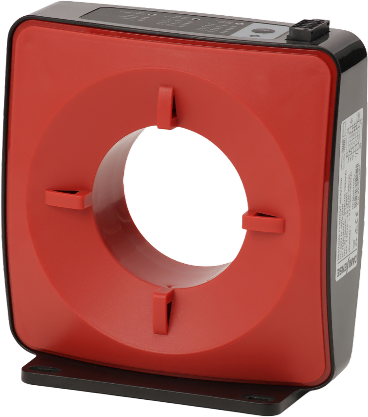

Current Transducer

SRCMH070IB+

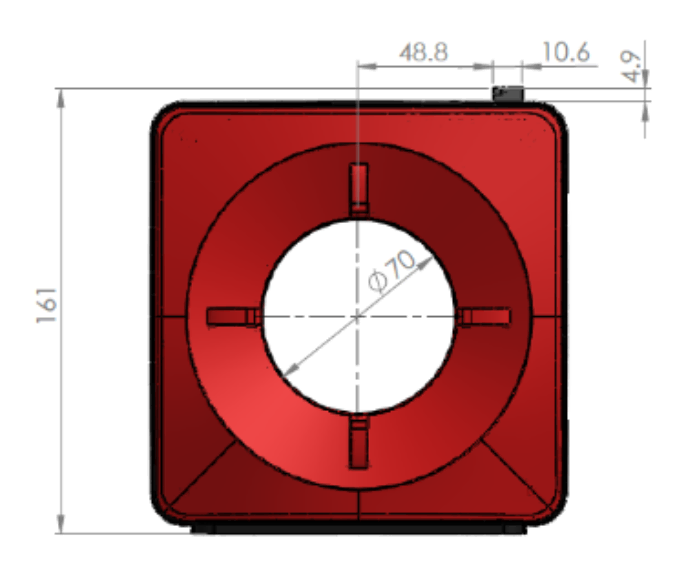

  • 70mm primary cable / busbar aperture
  • DC and AC residual current measurement of Type B/B+ in the range 0-2Arms up to 100kHz
  • User selectable Frequency range, Integration time and Rated residual operating current
  • Auto setup
  • Analog 4-20mA and relay output
  • Fluxgate current measurement technology with fixed excitation frequency for enhanced accuracy and stability
  • USB-connectivity and PC Software application for residual current analysis
RCM

Contact us

Description

Residual Current Monitors (RCMs) are used for monitoring of the residual currents in electrical power systems without the need for fast system shutdown. The RCM of Type B/B+ can measure DC and AC residual currents at frequencies of up to 100kHz, which makes it compatible to multitude of industrial applications, loads and generation sources. With its user selectable settings, this RCM offers flexible platform for residual current measurement which fits every possible usage both at the moment the industrial plant is designed, but also in case of extensions with new modern loads operating with DC voltages or at high switching frequencies which increase the amount of leakage current in the system.

Applications

  • Residual current monitoring in industry
  • Condition-based monitoring of insulation health
  • Replacement of / supplement to compulsory High voltage insulation testing
  • Scheduling of planned factory maintenance
  • DC power systems (UPS, PV, LED lighting...)
  • High frequency loads (SMPS, Motor drives…)
  • Mission critical (Data centers, Medical ...)
