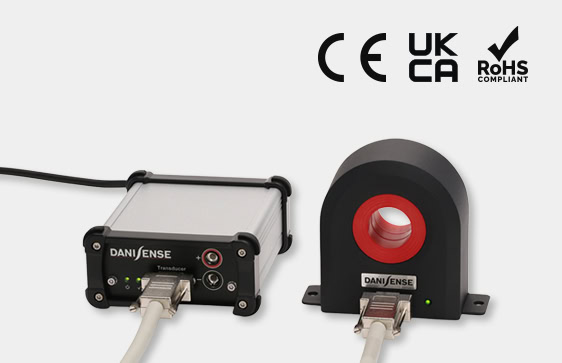

Current Transducer

DS200ID

  • 200 A rms nominal current
  • 500:1 primary/secondary current ratio
  • Current output through D-sub-9 connector
  • Ø27.6 mm aperture
  • 16 ppm total accuracy
  • 1 ppm linearity
  • 15 ppm ofset
  • 1 MHz bandwidth (±1 dB)
  • Status signal and LED

Contact us

Description

High precision DC current transducer (DCCT)
measuring up to 370 A currents and continuously
measuring 300 A currents with a linearity error less
than 1 ppm.
Based on the ultra stable Danisense closed loop flux
gate technology, the DS200ID has very low offset and ultra low drift.
It provides high resolution for precise monitoring,
reliable and consistent performance, and a rugged
design for durability

Primary Current Rating
RMS
Peak
Total Accuracy
Bandwidth
Aperture

Applications

  • Electric vehicle (EV) test bench
  • Power measurement and power analysis
  • Particles accelerators
  • MRI devices and medical scanners
  • Batteriy testing and evaluation systems
  • Current calibration purposes
  • Stable power supplies
  • Precision current sensing
