Current Transducer
DN1000ID-CP02
- 1000 A rms nominal current
- 1500:1 primary/secondary current ratio
- 38 mm creepage and clearance
- Current output

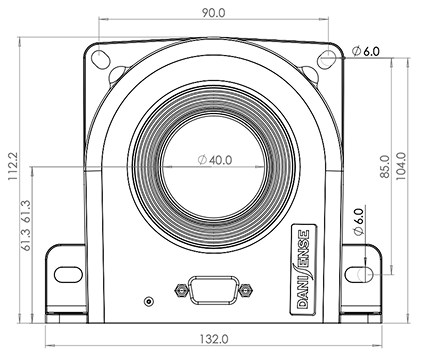

- Ø40 mm aperture
- 7 ppm total accuracy
- 1 ppm linearity
- 5 ppm offset
- Status signal and LED
Description
High precision DC current transducer (DCCT)
measuring up to 1500 A currents and continuously
measuring 1000 A currents with a linearity error less
than 1 ppm. With a large aperture and removable
isolation insert allowing wide cable terminals, the
DN1000ID-CP02 has an overrange capability of 1200 A rms up to 30 minutes.
Based on the ultra stable Danisense closed loop flux
gate technology, the DN1000ID-CP02 has very low offset and ultra low drift. Noise is best in class with
sub-ppm rms noise in the frequency range up to 10 kHz.
It provides high resolution for precise monitoring,
reliable and consistent performance, and a compact
and rugged design for easy installation and durability.
Primary Current Rating
Total Accuracy
Bandwidth
Aperture
Applications
- Electric vehicle (EV) test bench
- Power measurement and power analysis
- Particles accelerators
- MRI devices and medical scanners
- Batteriy testing and evaluation systems
- Current calibration purposes
- Precision current sensing
